Absolute Arm 8325 7-axis with RS5 scanner CMM
Absolute Arm 8325 7-axis with RS5 scanner CMM

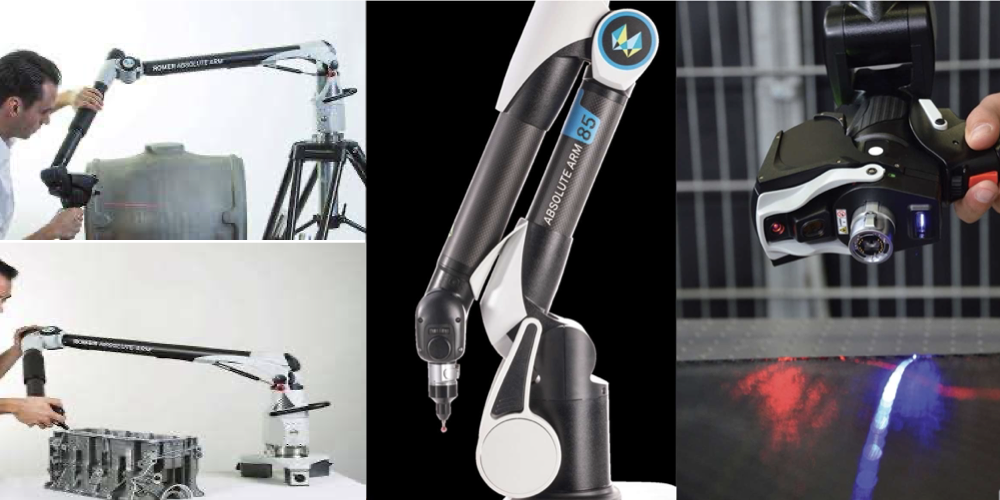

The flagship of the Absolute Arm range, the Absolute Arm 7-Axis delivers tactile probing and laser scanning in a uniquely ergonomic package. It’s the clear choice for high-end portable measurement applications. With usability central to its design, this is an articulating measuring arm that can’t be beaten when it comes to ease of movement and ease of measurement.
Built-in versatility comes in the form of a uniquely modular wrist design, including an on-wrist display that puts control and results in the hands of the user. Choose between configurable grip shapes and sizes as well as a wide range of accessories, from probe tips and 3D optical scanners to complete measurement systems designed for specialised applications.
The flagship RS6 Laser Scanner is the key to high-end 3D scanning and digitisation, while our RS5 Laser Scanner offers established and reliable general-purpose scanning functionality. The ground-breaking RSSQUARED Area Scanner offers a high-productivity alternative based on structured light scanning technology. Each can be quickly and easily mounted on the Absolute Arm 7-Axis by the user with no need for recalibration.
All this adds up to a far more productive and versatile arm that delivers high-accuracy measurement results more quickly and more easily than ever before.
CMM Inspection
For manufacturing equipment, productivity is not just defined by the machine itself, but the technologies and capabilities built into it and their contribution to the outcomes of the entire solution. At Hexagon we are challenging manufacturers to rethink how quality impacts the entire manufacturing process. We realize that quality is more than an inspection system; it’s a series of steps taken to improve production efficiency.
Providing the option to select configurations from predefined capability packages or to configure the system for individual requirements, Enhanced Productivity Series (EPS) CMMs ensure that quality engineers creating measurement routines, operators executing the inspection, and quality managers analyzing the data have the solution they need to ensure continuous improvement in the production workflow.
Ultra-high accuracy CMMs are highly-precise, premium measuring machines that ensure product quality is at its highest level – even for the most complex parts.
The ability to carry out very demanding measurements with sub-micron accuracy makes Hexagon’s ultra-high accuracy CMMs a well-proven solution for metrology institutes and calibration laboratories as well as a variety of industrial applications. Ultra-high accuracy CMMs are used in areas such as automotive, aerospace, mechanical engineering and wherever special geometries must be measured with the utmost precision.
Every ultra-high accuracy CMM can be equipped with a wide range of technologies to fulfil individual requirements. Different tactile and optical sensors, simultaneous 4-axis scanning, and an extensive range of individually configurable software options are only the beginning of the systems’ potential.
